Iron Soldering Robot

Iron soldering

Laser soldering

Laser welding

Iron solder station driven with a 4 axis robotic

Download datasheet The soldering iron is equipped dedicated calibrated solder tip.

These robots are suitable for soldering wires, through hole components or SMT.

The distribution of the alloy is made by the wire coil.

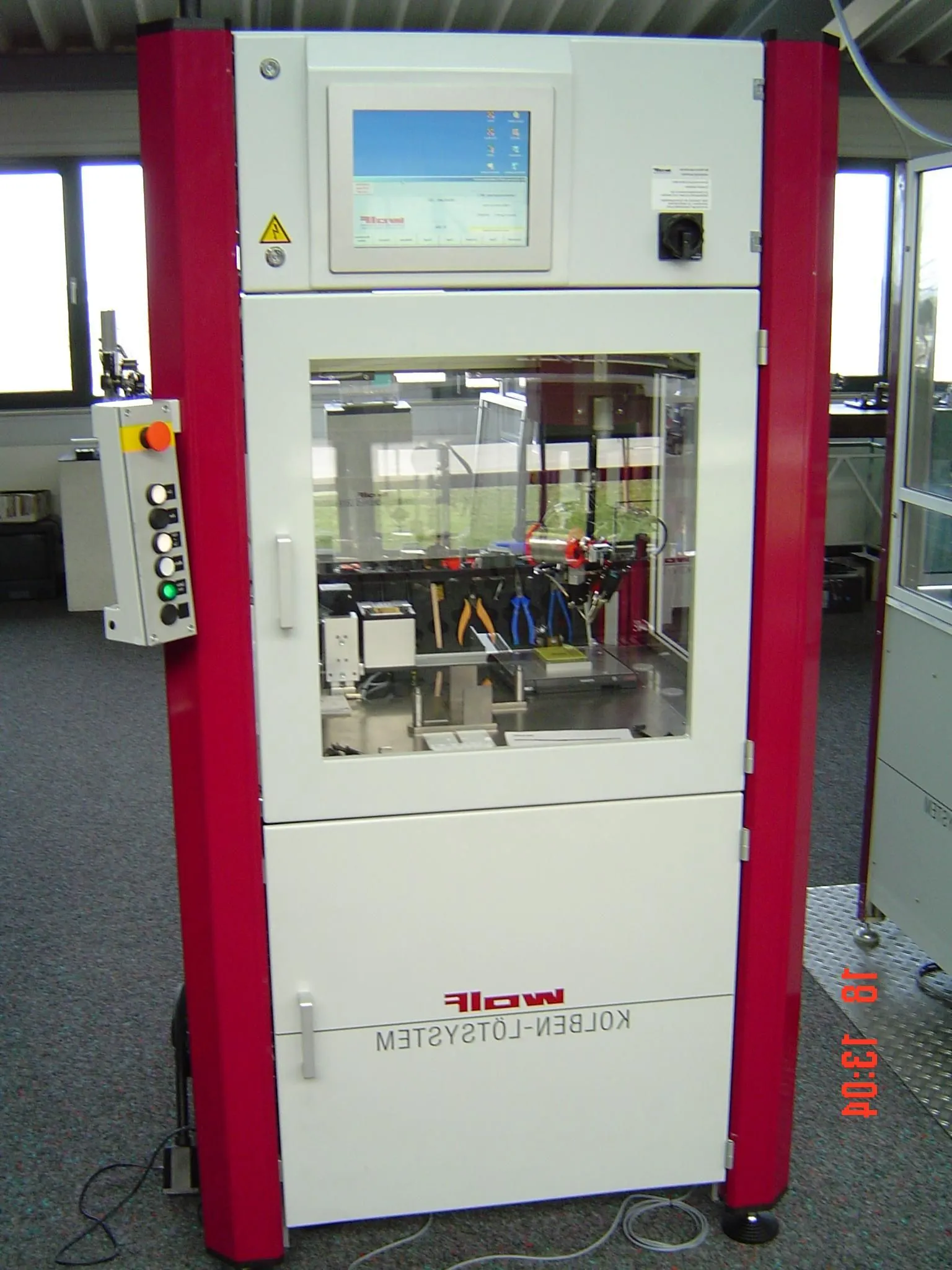

1. Robot ergonomic

SKYLINE model head 4 axis (X=500mm / Y=500mm / Z=50mm / ROT=345°)

Toutch screen monitor

PLC Siemens S7 or VIPA + software STEP

Loading parts :

• opening door

• round table

• transfer line

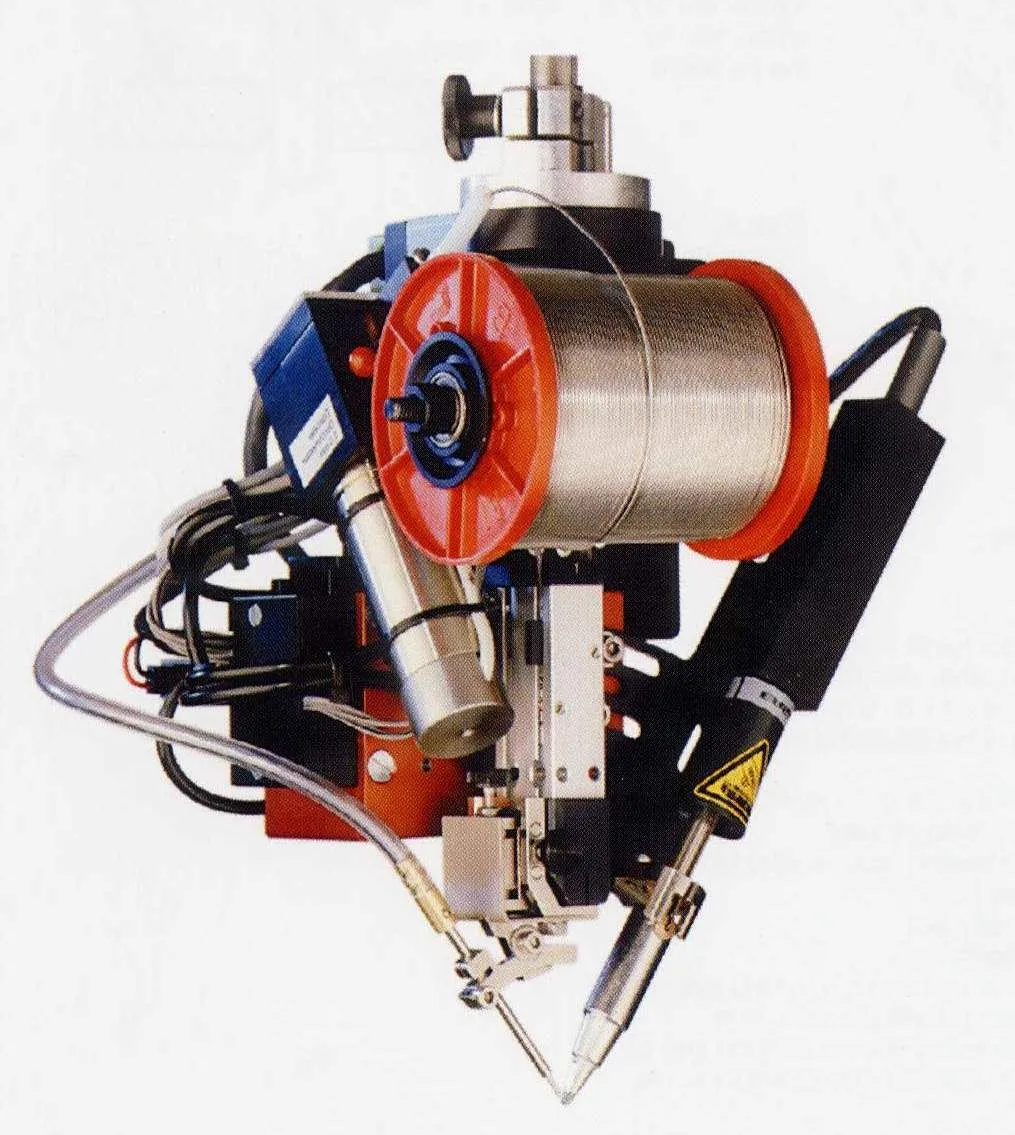

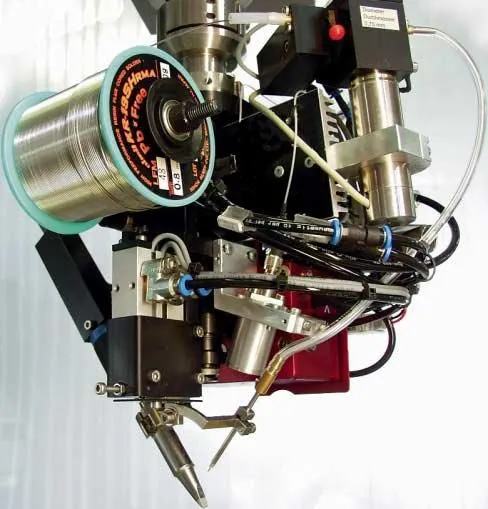

2. Quick step / dual pos head model

Heads are compatible with both robots and Skyline BoxLine

Mechanism allows controlling the position of tin wire from the failure.

This eliminates the wire feeding errors due to positioning tolerances of the part to be soldered.

The system automatically detects the presence of pin of the component.

This approach mechanism of the tip and the wire quick step/dual pos is a technology patented by Wolf Production Systeme GmbH.

Two cameras viewing in real time the soldering process.

Optionally, an additional camera automatically controls the joint quality .

Features :

• Iron power : 120W

• Head patented "Quick Step Duo Pos"

• Detecting presence of the pin

• Long life tip

• Tip calibrated and enhanced

• Optimum heat transfer up to the tip

• Working temperature continuously adjustable

• Wire feeding by servo with optional encoder

• Wire feed speed controlled

• Detection end of wire roll

• Wire alloy leaded or unleaded

• Two viewing camera (one vertical and one tilted)

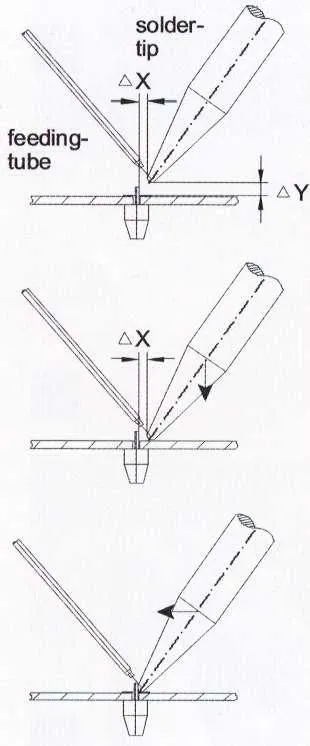

; QuickStep - Dual Pos description

Pre tinning on tip

Pre heat of the PAD

Contact tip and connexion

Downhill wire to low position

Advance wire opposite side of the tip

Laser soft soldering

Brochure soft soldering robots

Flyer soft soldering robots soft soldering robot

Laser soldering is suitable for many types of applications:

• Pins of through hole component,

• SMT electronics component.

The distribution of the alloy is made by the wire roll. The laser soldering process allows accurate and fast soldering. It is perfectly suited to lead-free alloys.

One or two cameras can view real-time implementation of soldering. Optionally, an additional AOI camera allows for the re adjust

XY robot position before the laser shot and / or automatic control of the quality of solder joints.

Two laser soldering diodes technology

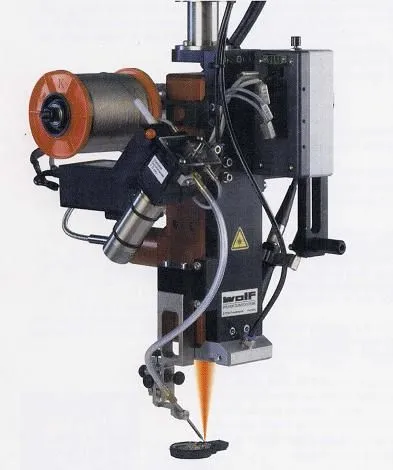

Laser mono fiber

• Vertical laser spot in 1 point

• Fiber diameter : 0,8 mm

• Diodes life time : 5 000 Heures

• Max. poxwer : 50W

• Single or double solder wire feeder

• Deux cameras

• Option : AOI

Multi fibers laser

Inclined multi fibers laser

• Fiber diameter: 0,2 mm

• 6 diodes 6x10W

• Diodes life time: 50 000 Heures

• Max. power: 60W

• Single or double solder wire feeder

• Deux cameras

• Option : AOI

Focus in 6 points, 2 points or 1 point

Double solder wire feeder

Solder wire diam. 0.5 to 1.5 mm

Micro cut

Connector lead soldered to the laser soldering head 6 beams

• Filling in more than 100% of the via hole

• Crystal structure dense small grains

• Formation of an intermetallic layer thin and uniform

Robots ergonomic SKYLINE model head 4 axis (X=500mm / Y=500mm / Z=50mm / ROT=345°)

Toutch screen monitor

PLC Siemens

Loading parts :

• opening door

• round table

• transfer line

Model Skyline in line

Brochure laser Wolf

Welding with laser scanner

This laser application is to weld plastic parts.

The laser optic is fixed. Le laser is a powerfull diode laser.

The laser shape is generated through a scanner galvanometric with mirrors.

Documentation

• RGL_engl.pdf
• Brochure Laser Soldering.pdf
• Wolf Brasage_Laser.pdf
• Download PDF format
