Burst & Zick C068 — power transistor forming machine
Machine Burst & Zick C068 (fiche en anglais) pour transistors de puissance TO18 à TO220 (3 broches et plus) et LED : chargement par magasin interchangeable, outils à valves anti-contrainte pour préserver le corps du composant, sortie collectée en tube.
- TO18 → TO220 & LED
- Magasin interchangeable
- Outils anti-contrainte
Un doute sur la configuration adaptée à votre production ? Nos équipes répondent sous 24 h ouvrées.
- Marque
- Burst & Zick
- Famille
- Machines Burst & Zick
- Parcours
- Préformage de composants →
Description
Vue d’ensemble
Fonctions, usages et bénéfices opérationnels.
for power transistors TO 126, TO 127, TO 220 TOP3 ...
Streckfuss C 068
Brochure C067 & C068
Spare parts
Description C068 :

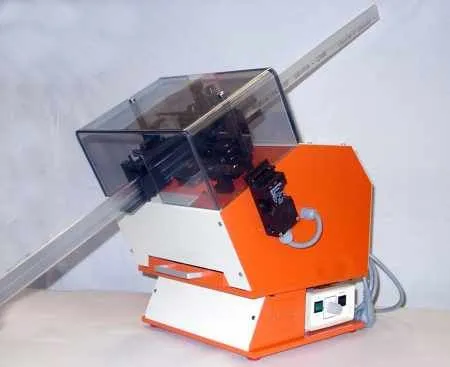

The Burst & Zick machine Type C 068 is designed to process power transistors of types TO 18, TO 92, TO 126, TO 127 and TO 220 with 3 or more radial leads. Also different components (e.g. LED's) can be processed, which fit into the supply-shaft of the machine.
The operation of the machine is restricted on filling up the exchangeable feed magazine with components to be processed. After the processing action the components are then desposited into a second tube for collection.
The tools are equipped with strain relief-valves to eliminate stress to the component body, when the leads are bend and cut. Once formed and cut the component is stored in a collection bin, seperated from shavings.
The tool-change for different forms takes only about 2 minutes.
Specification
- dimension
1100 x 550 x 500 mm
weight approx. 20 kg
electrical
230 V / 50 Hz / 110 W
- pitch
2.5 mm and others
lead Ø any
operation by engine (continuously variable)
components loose or sticks
production rate
3.500 pcs/hr
Version C067
Version C068
